---MOTOR---

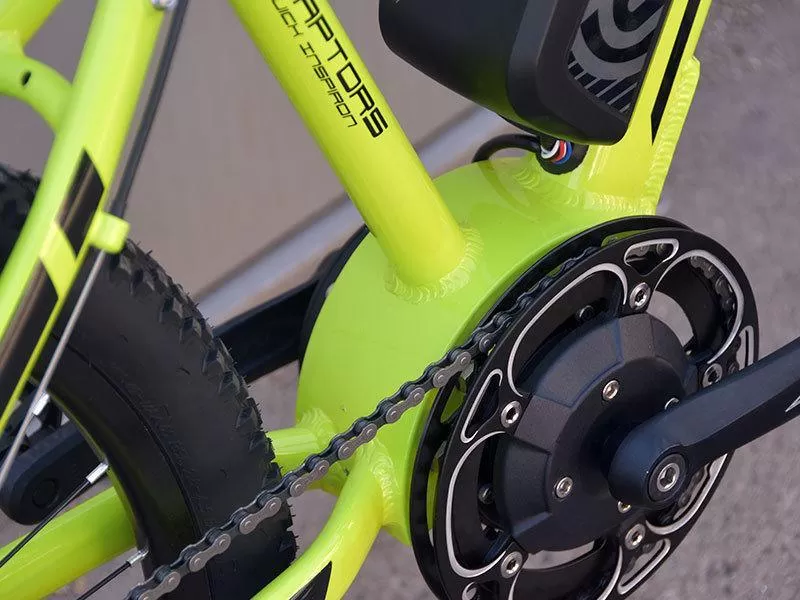

- Motor S240

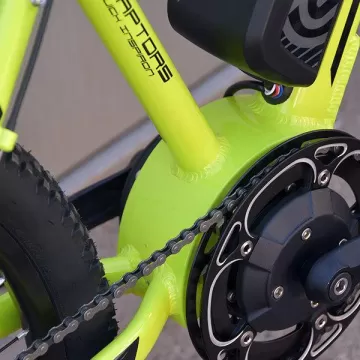

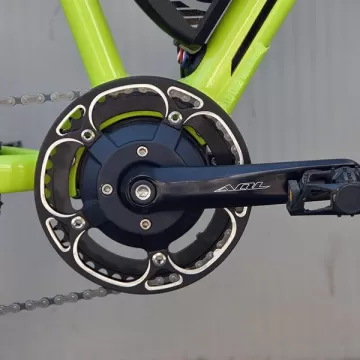

- AQL center drive motor
- Brushless, 36V,3000rpm
- Motor rated power 240W
- Reduction gear ratio: 1︰38
- Pedal Assistant System (PAS)
- Fully autonomous drive, no pedaling
- Output torque 90Nm
- Weight of motor 4Kg
- 30 degrees climbing ability
- 3sec 0-20 km/h speed up
- Maximum Speed up to 30-50Km/h
- Intelligent brushless controller
- Self-developed PEDELEC system
---BATTERY---

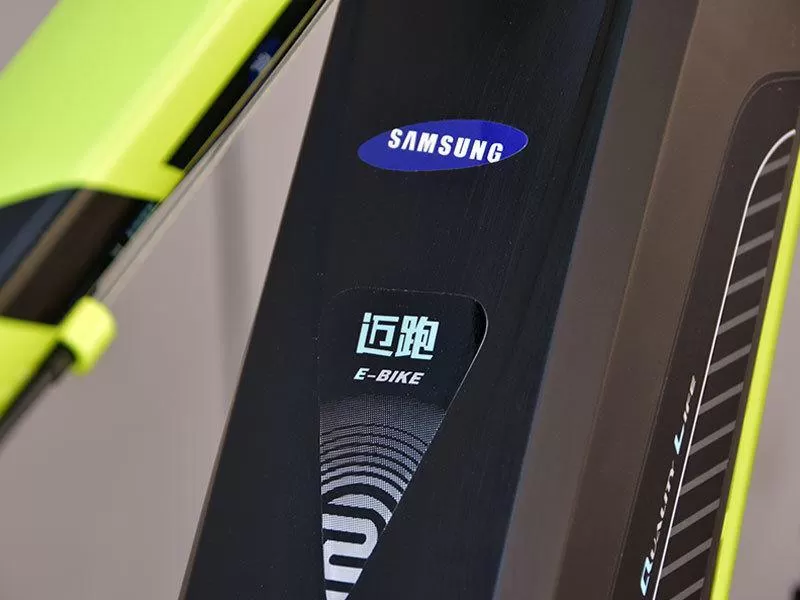

- 36v, 10.4Ah Samsung 18650 Li-Ion cells
- Weight ≤2.78Kg
- Charging time 4-6hrs
- Distance per charge ~40km (PAS)
- onboard status display, LED
- Large Dot Matrix LCD screen

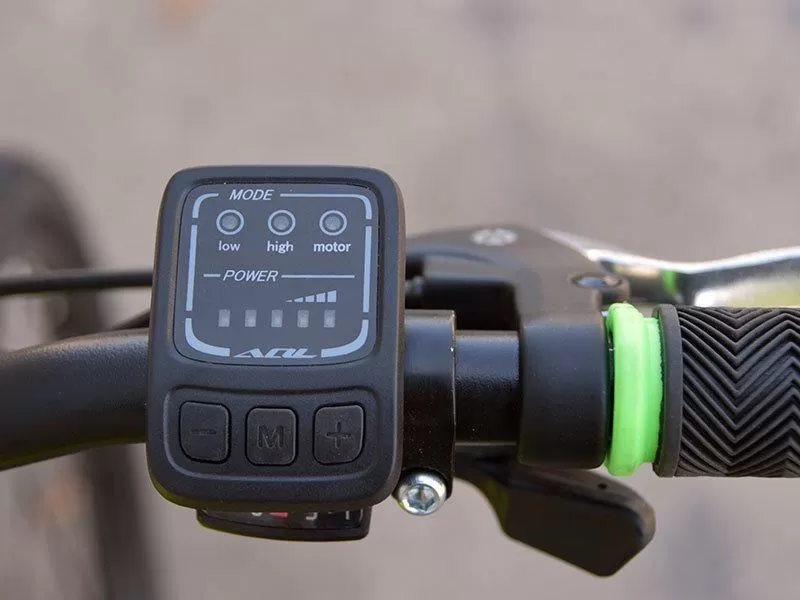

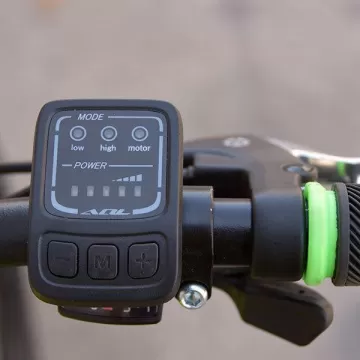

- Separate control panel for left/right thumb
- Detachable display unit
- 5 support modes
- Electric Throttle,wired
---FRAME---
- Aluminum 6061 ALLOY
- Anodized paint
- Size M, fits riders 160-175cm
- Seat post 27.2mm, 300mm
- Replacable deraileur hanger
---FORK---

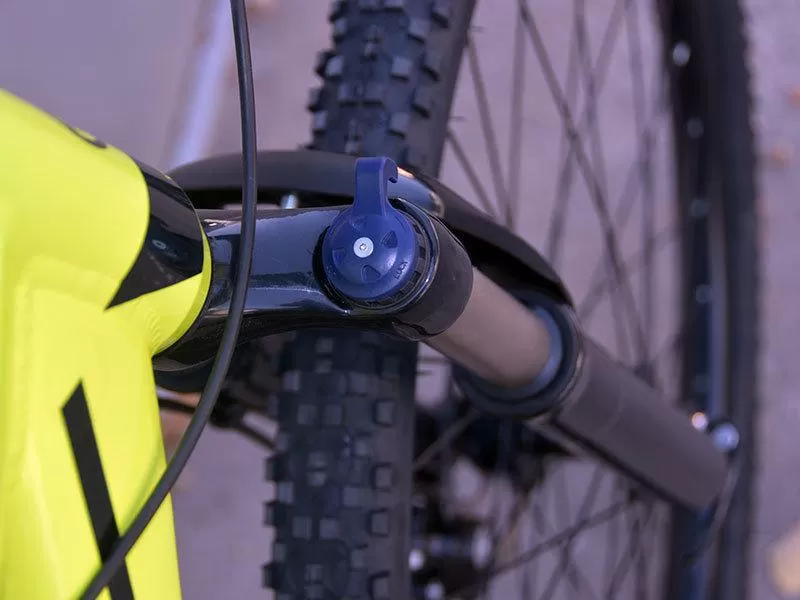

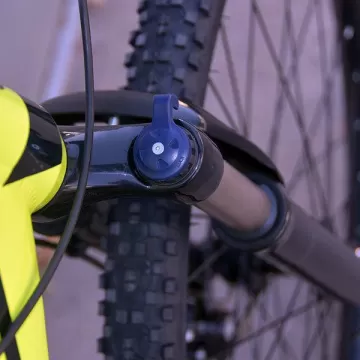

- ZOOM susspension fork
- Preload adjustable,Mechanical lockout, 80mm travel
---DRIVE SYSTEM---
- Chain KMC

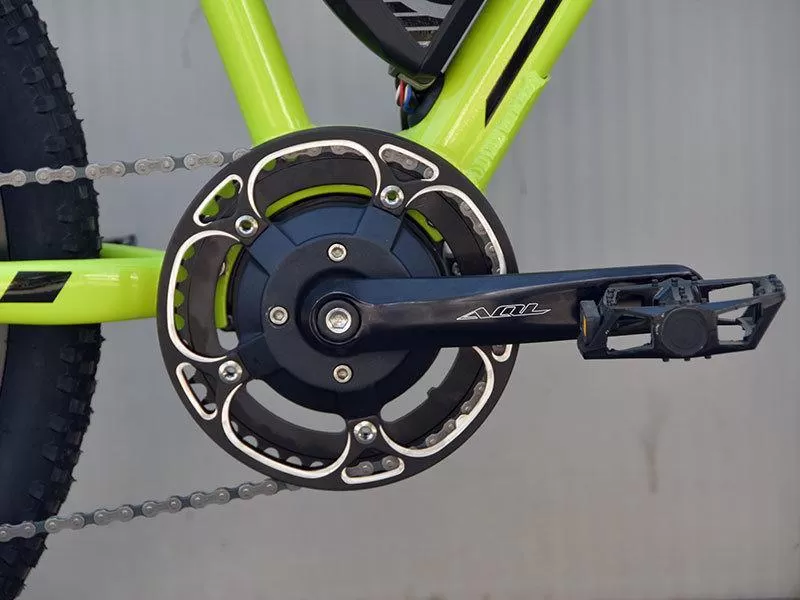

- Chain wheel single, 42teeth, double covers

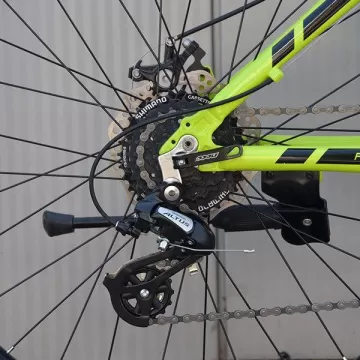

- Shimano ALTUS rear deraileur 8sp, RD-M310
- Shimano ALTUS rear shifter 8sp, SL-M310
- Shimano 8sp Hyperglide cassette HG200-8 12-32t-LASCO crankset, 170mm
- MTB flat (platform) pedals
---WHEELS---
- 26 inch double wall rims

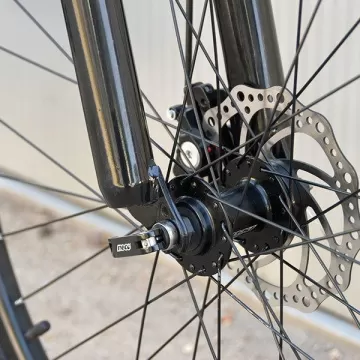

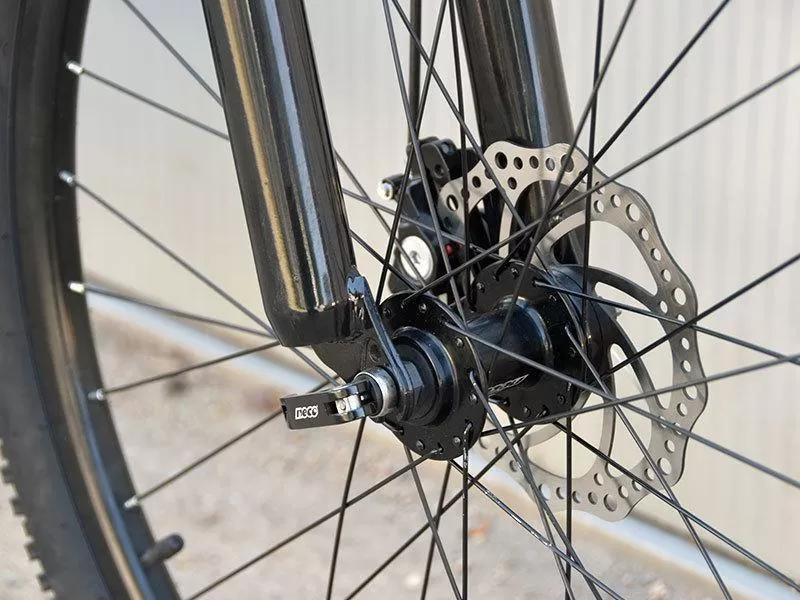

- Disc mount front and rear NECO hubs, QR open/close
- Freehub body, cassette

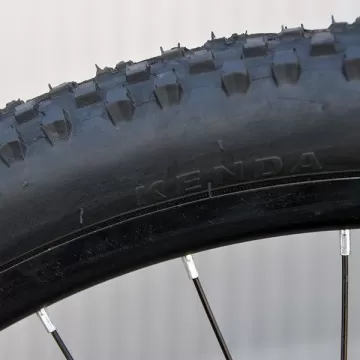

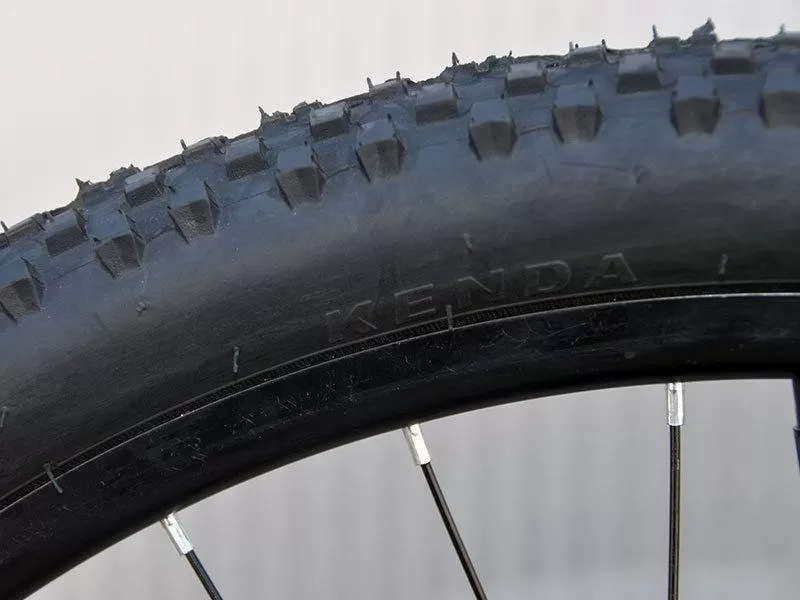

- KENDA 26x1.95 tires (50-559)
---STEERING---

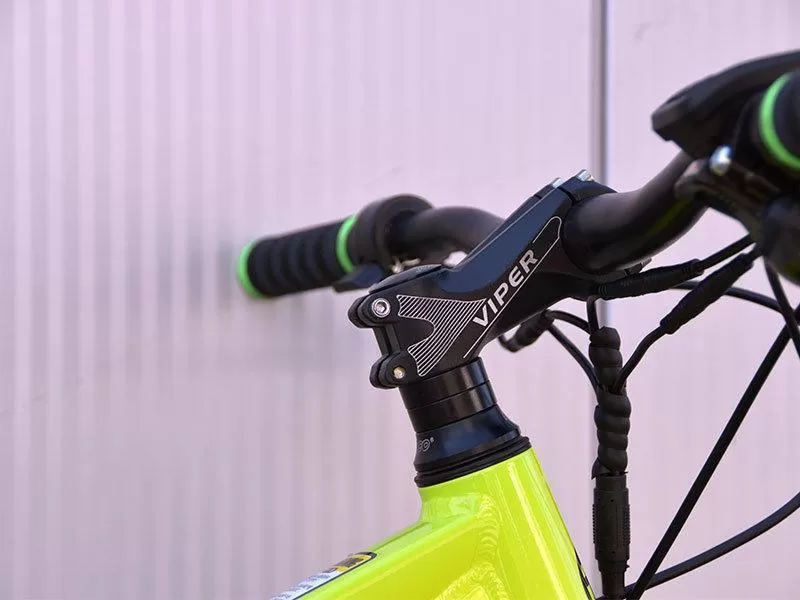

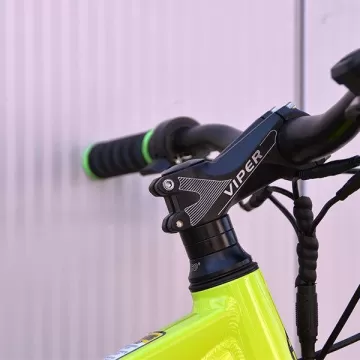

- 700mm steerer Viper, 2cm upsweep, 2cm backsweep,6061 Alu Alloy
- 75mm stem,31.8 clamp 15degree up
- NECO headset, integrated
